Hand Stackers are an economical alternative to powered stackers or forklifts. These stackers typically feature a hydraulic lifting mechanism operated by foot pedal or hand lever, offering reliable performance without the need for electricity or fuel. Manufacturers, Suppliers, Service Providers, Rental Providers, and Exporters In Mumbai, In Navi Mumbai, In Thane, In India provide a wide variety of Hand Stackers suited for different weight capacities and lifting heights.

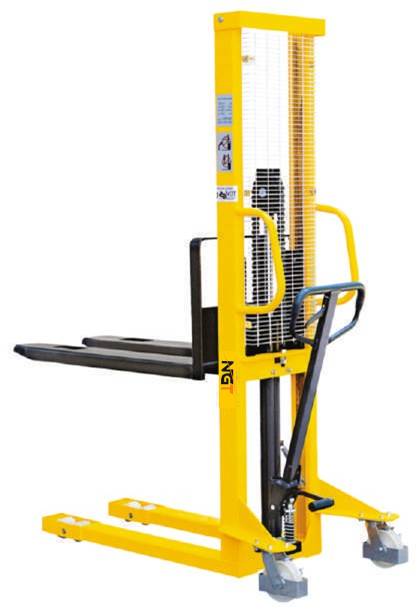

Manual Hand Stacker
Capacity:1000/1500 KgLift Height :1600 mm
Advantages :
- Robust Steel profile construction.
- An economical lift to handle tasks from transporting dies and moulds skids and pallets.
- Sturdy and compact enough to fit through standard doors and to operate in congested areas.
- Precision engineered for smooth performance and exceptional durability.
- Lifting function operated by foot and hand controls.
Main Specifications :
| Model | Unit | NGT-HS1016 | NGT-HS1516 |
| Load capacity/rated load | Q(kg) | 1000 | 1500 |
| Load centre distance | c(mm) | 500 | 500 |
| Fork height lowered | h13(mm) | 90 | 90 |
| Height, mast lowered | h1(mm) | 2085 | 2090 |
| Max. lift height | h3(mm) | 1600 | 1600 |
| Height, mast extended | h4(mm) | 2165 | 2150 |
| Overall length | l1(mm) | 1380 | 1380 |
| Overall width | b1(mm) | 1000 | 1000 |
| Fork dimensions | s/e/l(mm) | 30/100/800(1060) | 30/100/800(1060) |
| Distance between fork-arms | b5(mm) | 950/700 | 950/700 |
| Round clearance, laden, below mast | m1(mm) | 25 | 25 |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1580/1840 | 1580/1840 |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 1625/1891 | 1625/1891 |
| Turning radius | Wa(mm) | 1235 | 1235 |
| Lift speed, laden /unladed | mm/time | 25 | 25 |
| Lowering speed, laden/ unladen | mm/s | Manual control | Manual control |
| Service weight | kg | 250/316 | 255 |
